NorAn N-MAX BS 6+ liquid injector

Beschreibung

Efficient and Precise Nutrient Application

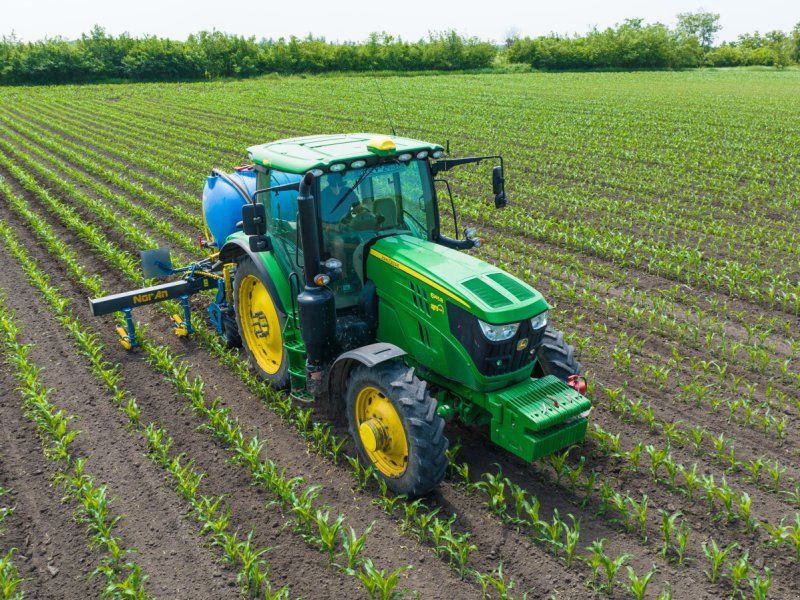

The NorAn N-MAX liquid fertilizer injector is one of the most innovative nutrient replenishment tools available on the market. This is well demonstrated by the fact that it won the "Hungarian Agricultural Machine of the Year 2021 - Innovation" award. Almost the first of its kind in Europe, the N-MAX allows farmers to efficiently apply easily absorbable liquid fertilizer directly into the root zone of plants at high operational speeds after sowing corn and sunflower crops. Discover this technology today!
Place your nitrogen exactly where it matters and exactly when it is needed, in an immediately absorbable form! Corn has the potential for rapid growth after the V8 developmental stage. Due to this fast growth, it requires a large amount of nitrogen during this phase.
With the NorAn N-MAX fertilizer injector, you can apply nutrients precisely where and when your crops need them most. Granular fertilizers remain unavailable until they receive moisture, which is why more and more farms are switching to liquid fertilizers.
This method allows corn to absorb more nitrogen, while reducing evaporation losses into the air and leaching into groundwater. The system guarantees minimal soil moisture loss and maximum nutrient utilization.
Hungarian-made, Western European quality!
✅ 2-YEAR FULL MANUFACTURER'S WARRANTY! (excluding wear parts)
Recommended for the following crops:
Corn,Sunflower,Tomato,Rapeseed (when sown with wider row spacing)
Technical specifications and standard equipment:
-Available in 4, 6, 8, 10, and 12-row versions (prices refer to the 6-row model)
Category 2 and Category 3 hitch
-Hydraulic folding
-Robust, durable frame made from 150x150 mm box section
-Expandable frame construction
-Fully equipped with stainless steel fasteners
-85 cm free beam height
-51 cm OFAS discs with maintenance-free bearings
-HARDOX injection knives
-Speed-dependent control
-Annovi Reverberi 115 L/min pump
-Arag fittings and valves
-Self-priming function
-1100 L tank capacity
-Tank mounted on a separate bracket for independent adjustment
-Speed determined by built-in GPS
-ISOBUS control
-Automatic shut-off when lifting at field edges
-Steplessly adjustable track width with 23x10.5-12 depth control wheels
-Steplessly adjustable coulter spacing
-Coulter spacing adjustable down to 45 cm
-Adjustable application rate between 100-400 L/ha
-Handwashing tank
-PTO shaft
-Road lighting
-Optional equipment:
-NorAn MultiTank additional front-mounted tractor tank
-Closing wheel set behind coulters
Visual flow indicator
-Suction hose
-Additional nozzle kit
-Hydraulic motor pump instead of PTO-driven pump
2024 Prices (basic configuration):
Without tank:
NorAn N-MAX WT 6+: €12,530 + VAT
NorAn N-MAX WT 8+: €14,414 + VAT
NorAn N-MAX WT 10+: €16,139 + VAT
NorAn N-MAX WT 12+: €17,864 + VAT
With 1100 L tank included:
NorAn N-MAX BS 6+: €17,445 + VAT
NorAn N-MAX BS 8+: €19,329 + VAT
NorAn N-MAX BS 10+: €21,054 + VAT
NorAn N-MAX BS 12+: €22,779 + VAT
Without tank + NorAn MultiTank HF 1100 L (hydraulic motor) front tank:
NorAn N-MAX SP 6+: €20,177 + VAT
NorAn N-MAX SP 8+: €22,061 + VAT
NorAn N-MAX SP 10+: €23,786 + VAT
NorAn N-MAX SP 12+: €25,511 + VAT
All orders are invoiced in Euros or in Hungarian Forints at the MNB exchange rate on the day of delivery.
