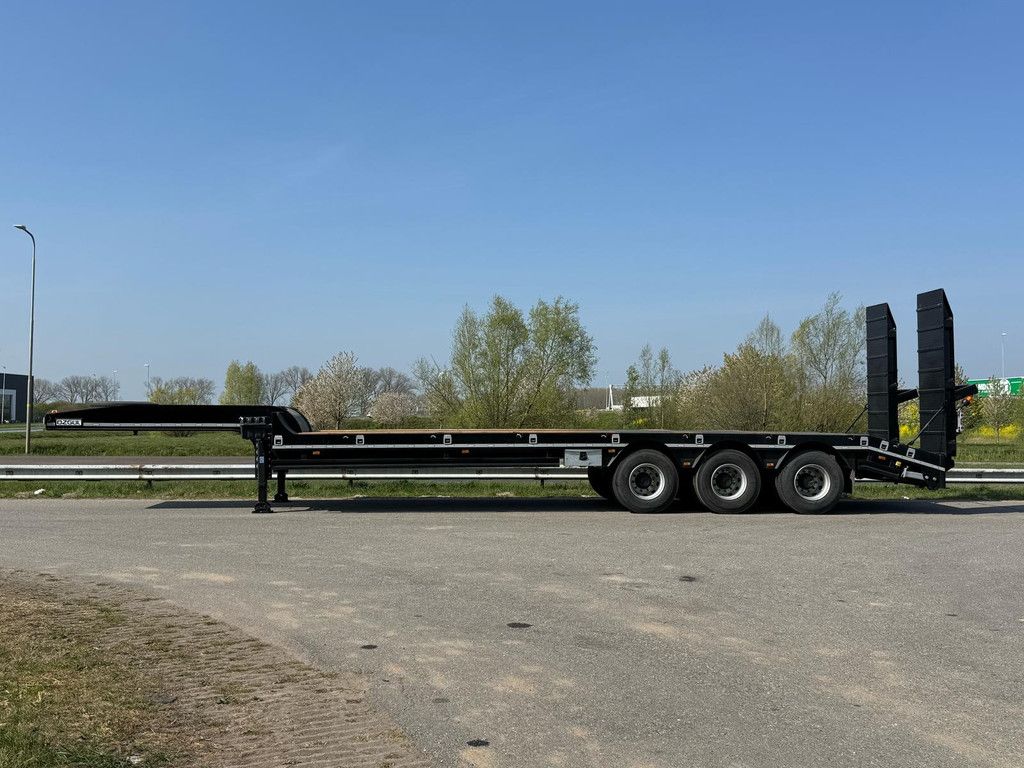

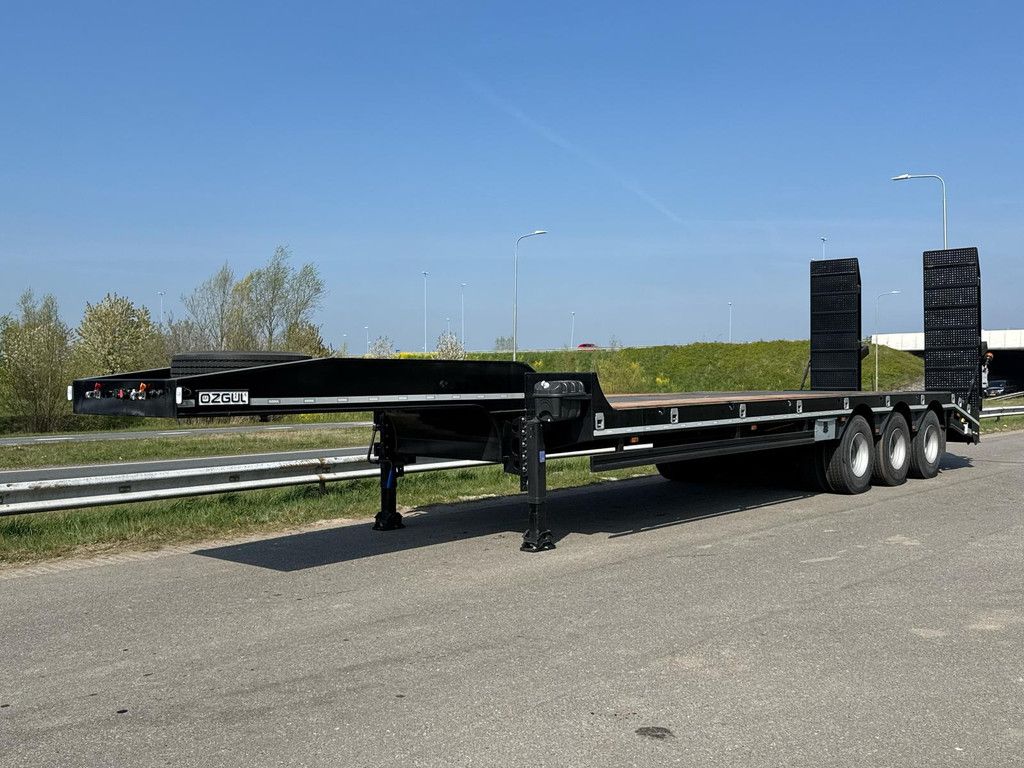

Ozgul 60 Ton 3 axle - LW3 AFR FIX
Merkmale
Beschreibung
Masses and Dimensions: The vehicle has a gross weight of 70,000 kg and a payload capacity of 60,000 kg, with a curb weight of 13,440 kg. The overall length is 14,900 mm, width 3,000 mm, and loading height 1,350 mm. The loading platform is 10,500 mm long, and the height of the fifth wheel kingpin is 1,400 mm, with a kingpin capacity of 22,000 kg.
Construction and Chassis: The chassis is a heavy-duty I-type frame made of S355 steel with fully automated ARC welding. The axles are Özgül 16-ton drum-brake axles with mechanical leaf spring suspension (12–14 leaves). The vehicle has a single-position kingpin (2” EU approved) and 12+1 tires on steel rims. The braking system is a two-line air brake with emergency brake chambers. The loading platform features a combination of chequered steel plates and hardwood edges.

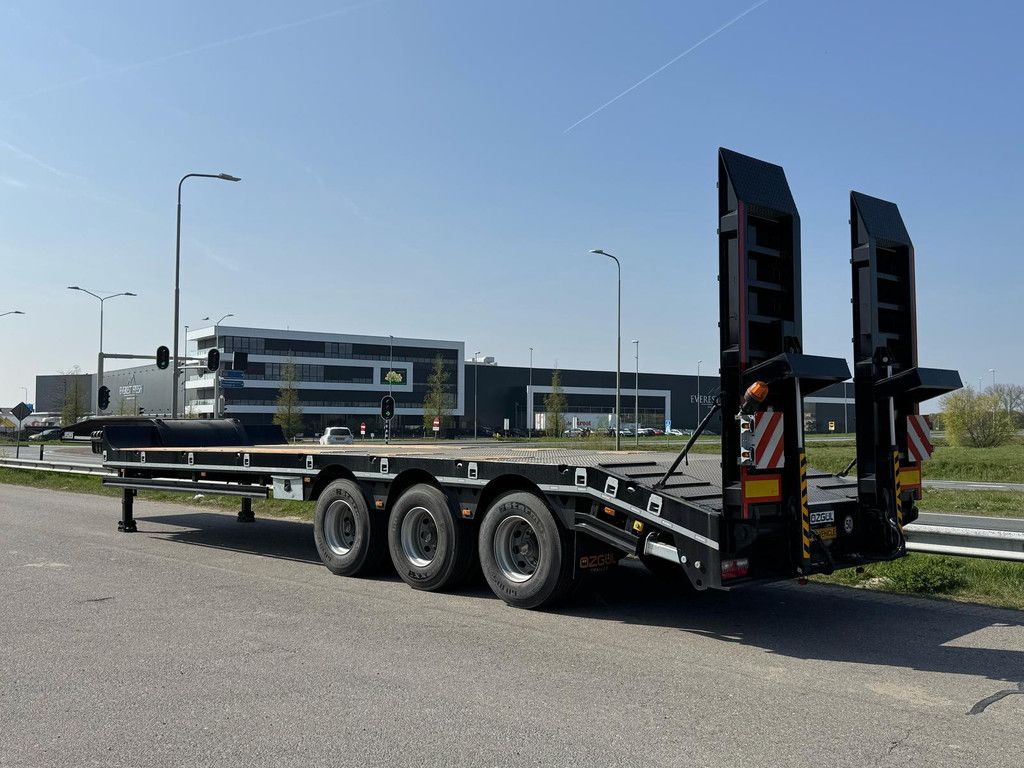

Technical Specifications and Accessories: Equipped with hydraulic rear loading ramps (2800 x 900 mm) with remote control, a 24V electrical system (SAE/ADR standard), and lighting all around.
